Wind turbines are quite a popular form of energy production in non-sun-blessed Countries, such as the UK, where it rains a lot of the time and sun is more rare. As of 2020, wind made up 24.8% of all of the UK’s energy production, with the greatest source being natural gas at 34.5%. This beats nuclear energy production at 17.2%, and easily beats out renewable sources such as solar at 4.4%.

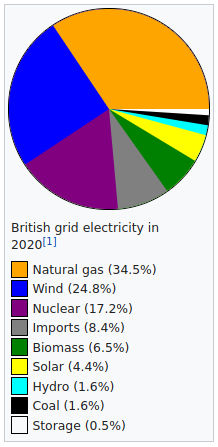

UK energy production (source: Wikipedia)
Much of the wind turbine power generation is via offshore wind farms, which is then piped via massive cables onshore. As the Wikipedia article points out:
By the beginning of September 2021, the UK had 10,973 wind turbines with a total installed capacity of over 24.2 gigawatts: 13.8 gigawatts of onshore capacity and 10.4 gigawatts of offshore capacity [..]
Current Implementation
I’m going to use the UK as a use case for wind turbines, as the UK has one of the largest and most successful implementations in the World to date. If anything, wind production is likely to be less efficient for other locations. The UK has quite strong winds due to some relatively unique geography.
Efficiency
A wind turbine is a relatively simple concept, a motor is spun by the force of the wind and this in turn generates electricity. It’s of course a little more complex than this, but that is enough to get the basic idea. Next we an take a look at efficiency:
Accordingly, Betz’s law gives the maximal achievable extraction of wind power by a wind turbine as 16/27 (59.3%) of the rate at which the kinetic energy of the air arrives at the turbine.
It’s worth noting this is not really a bad thing at all. 100% conversion would mean zero wind speed after reaching the turbine, which could have a dramatic impact on the environment, etc. It would also mean it wouldn’t be possible to have them so close to one another.
Wind-to-rotor efficiency (including rotor blade friction and drag) are among the factors affecting the final price of wind power. Further inefficiencies, such as gearbox losses, generator and converter losses, reduce the power delivered by a wind turbine. To protect components from undue wear, extracted power is held constant above the rated operating speed as theoretical power increases at the cube of wind speed, further reducing theoretical efficiency. In 2001, commercial utility-connected turbines delivered 75% to 80% of the Betz limit of power extractable from the wind, at rated operating speed.
As you can see, higher wind does not equal higher return, only higher wear on the turbine parts. There is also some inefficiencies that simply cannot be removed from the system. 75% - 80% of the theoretical upper limit of energy conversion seen in the field is highly impressive. Bare in mind, some of the most efficient engines out there only see numbers like 50% efficiency in normal operating conditions.
Analysis of 3128 wind turbines older than 10 years in Denmark showed that half of the turbines had no decrease, while the other half saw a production decrease of 1.2% per year.
It’s quite interesting to see that there appears to be some form of degradation in operating performance over time, similarly seen in solar power. Something like nuclear power or fossil fuel power stations will pretty much provide just as much power year after year (within limits). Part of this is because they are simply more maintainable and the conditions they operate under are more controllable. Wind turbine are typically hard to repair (and this has knock-on effects we will discuss later).
Infrastructure
One issue with building wind turbine farms offshore is that there is no existing infrastructure out there. These farms are generating many megawatts or electricity and this needs to make its way inland with massive copper cables. These is resistance in these cables and therefore a voltage drop, further increasing inefficiency.
Environmental impact of wind power includes effect on wildlife, but can be mitigated if proper monitoring and mitigation strategies are implemented. Thousands of birds, including rare species, have been killed by the blades of wind turbines, though wind turbines contribute relatively insignificantly to anthropogenic avian mortality. Wind farms and nuclear power stations are responsible for between 0.3 and 0.4 bird deaths per gigawatt-hour (GWh) of electricity while fossil fueled power stations are responsible for about 5.2 fatalities per GWh. In 2009, for every bird killed by a wind turbine in the US, nearly 500,000 were killed by cats and another 500,000 by buildings.
Compared to other energy generation methods, the impact on wildlife can be said to be better, but still not ideal.
End of Life
Another consideration is the carbon emissions generated during the production of these massive structures. They have to operate some time before they are carbon-neutral. As many of the parts cannot be recycled, this is a carbon cost that must be considered when considering their ‘green’ nature.
In Germany, wind turbine blades are commercially recycled as part of an alternative fuel mix for a cement factory. In the USA the town of Casper, Wyoming has buried 1,000 non-recyclable blades in its landfill site, earning $675,000 for the town. It pointed out that wind farm waste is less toxic than other garbage.
When decommissioning the wind turbines, it is important to consider that some parts can simply not be recycled, such as the blades. They are often made of some glass composite material and therefore cannot be easily handled either. The only real safe way to deal with them is to bury them or embed them in some material.
As of 2019, a wind turbine may cost around $1 million per megawatt.
This includes labour costs and material costs, both of which are difficult to reduce further given location and complexities regarding optimal location for wind power generation. These locations can often be inaccessible, if by altitude alone.
In 2015, it was estimated that the use of wind power in the UK had added £18 to the average yearly electricity bill.
I believe one misconception that is often thrown out there is that renewable energy is somehow a one-time investment into infinitely cheap future electricity. This simply is not true. Renewable energy will be an indefinitely increased cost to the bill/tax payer. As the UK and other Countries switch to renewable sources of energy, their energy costs will increase, not decrease.
In August and September 2021, the UK had to fire-up coal plants, amidst a lack of wind, as power imports from Europe were insufficient to satisfy demand.
Wind generation is very good when it is available, but wind cannot be relied upon to be available at all times. Energy from storage makes up just 0.5% of UK power - which is not even close to being sufficient to make up for dips in wind-based energy production.
Putting more stress on the electric grid demand will be electric vehicles, which could easily see electricity use jump by magnitudes. Ironically, electric vehicles may also be the solution, with massive batteries being attached to the energy grid in a decentralized manner, they could equally be used to pump energy back into the grid at optimal times to make up for generation shortages 1.
Main Issues
I believe the main issues with wind turbines can be summarised as so:
Intermittent power generation - Wind turbines suck at generating energy consistently. Wind generation can be highly intermittent and will increase/decrease based on the time of the day. Ideally, you want the ability to easily scale energy production based on demand and be able to rely on some minimum power generation per turbine - neither of which is true. As a result, less efficient methods are then used to meet demand, such as coal plants.
Infrastructure - Many of these turbines are placed far-away from the locations they serve - meaning that massive amounts of infrastructure are required to integrate them. The closer we can get wind turbines to the energy consumers, the better.
Cost/Investment - There is a significant investment required before the wind turbines are able to generate power, something that is ultimately passed onto the energy consumer.
I believe that through small-scale decentralization, many of these issues can be addressed.
Decentralisation
I propose a decentralised solution, where individuals are able to generate their own electricity from their own garden or land. This would be very similar to how currently individuals can purchase their own solar panels for their roof. This reduces costs as each person is able to profit (reduce costs) from their own initial investment and can even use low-cost materials to build out the wind turbine. As the turbines would be located at the place where the generation is happening, this massively reduces infrastructure costs too.
Using existing hardware will massively reduce costs in this space. As electric vehicles are being pushed hard, it is not unreasonable to consider what to do with the older vehicles, that will likely be scrapped. On these vehicles can typically be found an alternator/starter motor. There was already some discussion in 2012 about low-cost small wind turbines using these. These would not be the most efficient design, but more than good enough for a note-worthy level of energy production.
Addressing localised storage, we could make use of mass-based batteries by elevating a mass upwards and then lowering it to generate energy, making use of the same motor for generation. Another method could be to employ a flywheel, although it could be argued this requires higher-precision engineering and could be significantly more dangerous. A flywheel also leaks energy over time simply due to friction in the bearings, etc, whereas an elevated mass will in theory not leak any energy until lowered.
The reason why mass-based storage is not done on a large-scale is simply that the problem also scales with the energy to be stored. Elevating enough mass for a few kilowatts of power is relatively easy, the same mass for a megawatt or gigawatt and the scale is enormous. This appears to be an energy storage method only suitable for small scale operations.
We will discuss electric vehicles in more depth in a future article.↩︎
